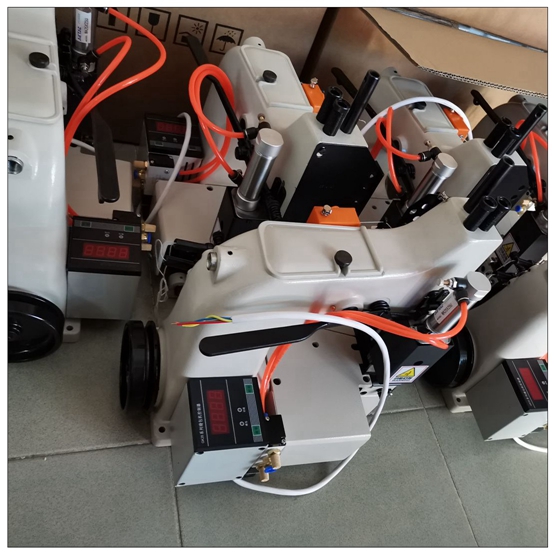

GK35-6 series automatic sewing machine , equipped with photoelectric switch, pneumatic cutting device and controller. Through the photoelectric switch and controller automatic control start and stop, automatic cutting line braid, suitable for chemical plants, food processing plants, warehouses, ports and other enterprises with high automation requirements to achieve automatic sewing bags filled with materials, paper bags, cloth bags, etc. The controller has the function of counting and adjusting the length of braid after the sewing bag, which is convenient for customers to use.
The sewing machine is equipped with a new controller, which can adjust the length of the front and back braids according to the needs of customers while completing the control of start and stop and counting the sewing machine, especially suitable for the use of wrinkled paper after stitching.
- GK35-6A automatic sewing machine, using cutter type structure, under the drive of the cylinder, the upper knife and the lower knife with the completion of tangential action, tangential more reliable, and can at the same time cut off wrinkle paper.
- Gk35-6AFreverse direction automatic sewing machine is a new reverse direction automatic sewing machine developed on the basis of GK35-6A automatic sewing machine. This machine can be matched with GK35-6A normal machine to sew bag opening on both sides of the same column.
Working process: Assembled on the conveyor, when the woven bag filled with materials arrives at 10 cm from the sewing machine, the sewing machine automatically starts under the control of the light control switch, suture the bag mouth, sew each bag, the cutter automatically cuts the line braid, the sewing machine automatically stops.
| Maximum sewing speed | 2000r.p.m. |
| Maximum sewing thickness | 8mm |
| Range of needle distance adjustment | 6.5-11mm |
| Stitch form | Double chain 401 |
| Line specification | Cotton thread, polyester thread |
| Lifting height of presser foot | 0-15mm |
| Needle type | 80800×250# |
| Belt pulley diameter | φ 90mm |
| Line braid cutter device | automatic tangent |
| Start and stop | By photoelectric switch,automatically start and stop |
| Motor power requirements | Greater than or equal to 0.37kw |
| Weight | 32kg |
| Outer packing size | 500mm * 500mm * 330mm |
| Auxiliary function | Automatic counting, adjusting the length of braid after sewing |
